| Engine |
Without Aircon |
With Aircon |
| Model |
4JB1 |
| Type |
4-cyl, Watercooled, 4 Cycle, Inline, OHV with
Automatic Engine Stop Device, Direct Injection, DIESEL |
| Displacement |
liters |
2.8 |
| Maximum
Output |
ps /
rpm |
80 / 3,600 |
| Maximum
Torque |
kg.m /
rpm |
17.8 / 2,000 |
| Fuel System |
Distributor Type VE, Bosch,
All-Speed Mechanical Governor |
| Fuel Tank Capacity |
liters |
75 |
|
| Weights and Dimensions |
Without Aircon |
With Aircon |
| Gross Vehicle Weight |
kg |
3,500 |
| Maximum Payload |
kg |
1,340 |
| Overall Length |
mm |
4,844 |
| Overall Width |
mm |
1,695 |
| Overall Heigth |
mm |
2,147 |
| Wheelbase |
mm |
2,490 |
| Front Overhang |
mm |
1,015 |
| Rear Overhang |
mm |
1,338 |
|
| Transmission and Clutch |
Without Aircon |
With Aircon |
| Model |
MSB-5S |
| Type |
5-speed, Overdrive, Synchromesh on all Forward Gears, Short Lever and Remote Control |
| Gear Type |
Single Reduction Hypoid Gear |
| Clutch Type |
Dry Single Plate with Diaphragm Springs, Hydraulic Control |
|
| Tires and Wheels |
Without Aircon |
With Aircon |
| Tire Size |
7.00-15-12PR |
| No. of Tires |
5(including spare) |
| Wheel Size |
5.50F x 15 |
| No. of Studs |
Six (6) |
|
| Steering and Brakes |
Without Aircon |
With Aircon |
| Steering Type |
Recirculating Ball and Nut with Power Assist Tilting |
| Brake Service |
Drum Type, Hydraulic Dual Circuit with Vacuum Assist, Front Two Leading, Rear Dual Leading |
| Parking Brake |
Mechanical, Internal Expanding at Rear of Transmission, Lever Type |
|
| Frame and Suspension |
Without Aircon |
With Aircon |
| Cab Construction |
Non-Tilt Cabin, Monocoque Construction |
| Frame Type |
Ladder Type Channel Section |
| Suspension Type |
Semi-Elliptic Leaf Springs with Hydraulic Double Acting Telescopic Shock Absorbers at Front and Rear |
|
| Exterior |
Without Aircon |
With Aircon |

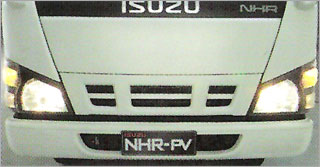

| Headlamps |
Large 1-Piece Multi-Reflector with Integrated Park and Signal Lamps |
| Cornering Lamps |
Equipped |
| Radiator Grille |
6-Hole Design |

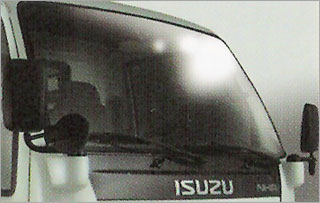

| Windshield |
Panoramic Laminated Green, Bonded Type |
| Side View Mirrors |
Black, Large Vertical Type |
| Door Handle |
Black |
|
| Interior |
Without Aircon |
With Aircon |
| Seats |
Driver |
Sliding and Reclining with Integrated Headrest |
| Co-Driver |
Folding with Integrated Headrest |
| No. of Passengers |
3 Persons (front cabin) |
| 14 Persons (rear cabin) |

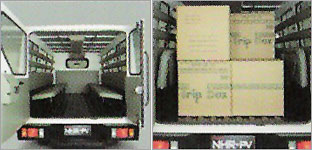

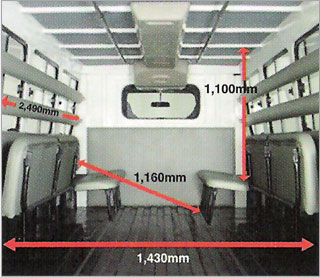

| Seat Configuration |
Rear Cabin |
Split and Folding Type |

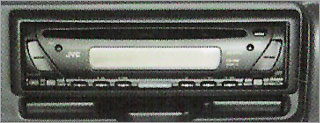

| Audio System |
Single In-Dash CD/Tuner |
| Air Conditioning System |
None |
Dual Type (Front + Rear Cabin with Extended Aircon Duct System) |
| Rear Body Map Lamp |
Equipped (Dual) |
|
| Electrical System |
Without Aircon |
With Aircon |
| Battery / Generator |
12V x 1 /12V-50A |
12V x 1 / 12V-80A |
| Stater |
Reduction Type, 12V-2.0kW |
|
| Meters, Gauges and Warning Lights |
Without Aircon |
With Aircon |
| Speedometer |
Equipped |
| Tacindexter |
Equipped |
| Odometer |
Equipped |
| Fuel Gauge |
Equipped |
| Temperature Gauge |
Equipped |
| Oil Pressure Warning Lamp |
Equipped |
| Battery Charging Warning Lamp |
Equipped |
| Parking Brake and Brake Fluid Warning Lamp |
Equipped |
| Fuel Water Sedimentor Warning |
Equipped |
| High-Beam Indicator (Bright) |
Equipped |
| Turn-Signal Indicator |
Equipped |
|
| Comfort and
Convenience |
Without Aircon |
With Aircon |
| Ashtray |
Equipped |
| Cigarette Lighter |
Equipped |
| Sun Visor |
Equipped(Driver and Passenger) |
| Room Mirror |
Fixed |

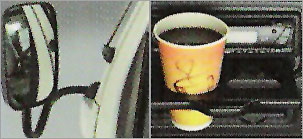

| Cup Holders |
Pull-Out Type, Dashboard Mounted, (2 pieces) |
| Glove Box |
Equipped |
| Assist Grips (Driver and Passenger) |
Equipped |
|
| Safety and Security |
Without Aircon |
With Aircon |
| Driver Side Seat Belt |
3-pt ELR |
| Passenger Side Seat Belt |
3-pt ELR x 2 + Center Belt |
| Anti-Slip Aluminum Step |
Equipped(Driver and Passenger) |
|
| *Specifications are subject to change without prior notice. |
